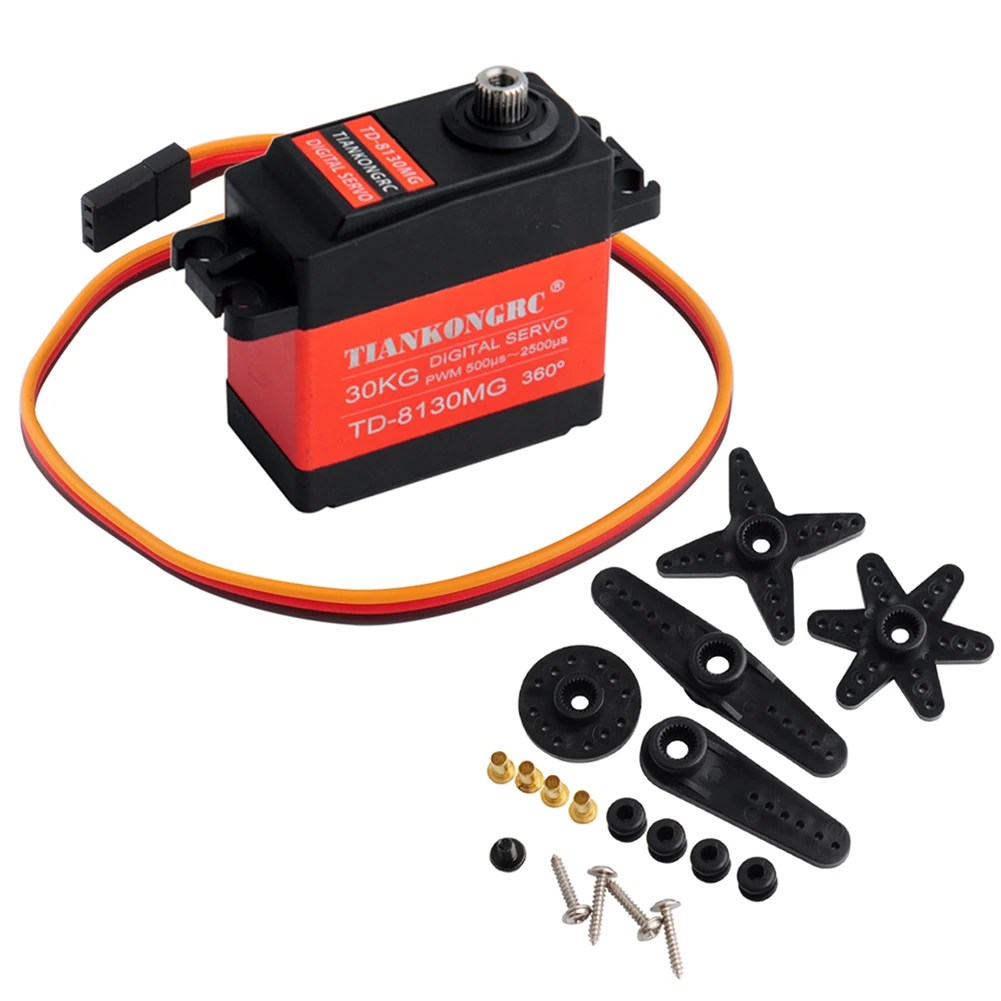

Td8130 30Kg Torque Digital Servo 360 degree Continuous Rotation Torque Digital Coreless Servo
Specification parameter
Storage Temperature Range:-30°C~80°C
Operating Temperature Range:-25°C~70°C
Temperature Range:-25°C~70°C
Humidity Range:65%±10%
Size:40.0*20.5*40.5mm
Weight:56g±5%
Gear type:5 Metal
Limit angle:360°
Bearing:2BB
Horn gear spline:25T OD:5.9mm
Horn type:Plastic, POM
Engineering plastics(PBT)+Aluminum alloy
Connector wire:320mm±5mm
Motor:Carbon brush motor
Splash water resistance:No
Operat voltage:4.8V-7.2V
Idlecurrent:mA
Noload speed:0.24sec/60°-0.17sec/60°
Runnig current:140mA-200mA
Peak stall torque:29.5kg.cm-32kg.cm
Stall current:2600mA±10%-3400mA±10%
Working voltage range:4.8-7.2V
Command signal:Pulse width modification
Amplifier type:Digital controller
Pulse width range:500~2500usec
Neutral position:1500usec
Running degree:180°±3°(when 500~2500usec)
Deadband width:5 usec
Rotating direction:Counterclockwise (when 1000~2000usec)
