Description:

APM 2.8 Flight Controller Eliminate V2.52 Version Old 1.0mm 6p Sm06b GPS Interface , Changed To The Df13-4p Compass External i2c Interface, Place The Df13-5p GPS Interface With External Interfaces of The Compass , More Convenient To Connections GPS with External Compass. this complete open source autopilot system and the bestselling technology that won the prestigious Outback Challenge UAV competition. It allows the user to turn any fixed, rotary wing or multirotor vehicle (even cars and boats) into a fully autonomous vehicle; capable of performing programmed GPS missions with waypoints.

The ArduPilot APM 2.8 Flight Controller Mega board can control Planes, Copters and Rovers.

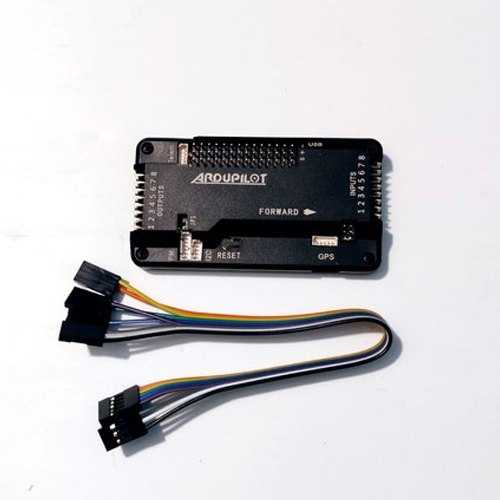

This is the new APM 2.8 flight controller. The sensors are exactly the same as the APM 2.6 flight controller however this has the option to use the built in compass, or external compass via a jumper. This makes the APM 2.8 ideal for use with multicopters and rovers.

APM 2.8 Flight Controller is a complete open source autopilot system and the bestselling technology that won the prestigious Outback Challenge UAV competition. It allows the user to turn any fixed, rotary wing or multirotor vehicle (even cars and boats) into a fully autonomous vehicle; capable of performing programmed GPS missions with waypoints.



Other Match Products:

Power Module for APM 2.8 and quadcopters

Flight Controller Anti Vibration Shock Absorber for APM in Pakistan

6040E High Speed Propeller Efficient Resistance For RC Plane

1045 Multiaxial ABS Blade Propellers Pair



FEATURES :

• Arduino Compatible!
• Includes 3-axis gyro, accelerometer, along with a high-performance barometer
• Onboard 4 Megabyte Data lash chip for automatic datalogging
• Optional off-board GPS, uBlox LEA-6H module with Compass.
• One of the first open source autopilot systems to use Intenseness’ 6 Doff Accelerometer/Gyro MPU-6000.
• Barometric pressure sensor upgraded to MS5607, from Measurement Specialties.
• Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.
• Weight: 30g

RESOURCES:

• ArduPlane manual
• ArduCopter manual
• ArduRover manual
• Dimensional drawing
• EAGLE files
• Assembly guide.
