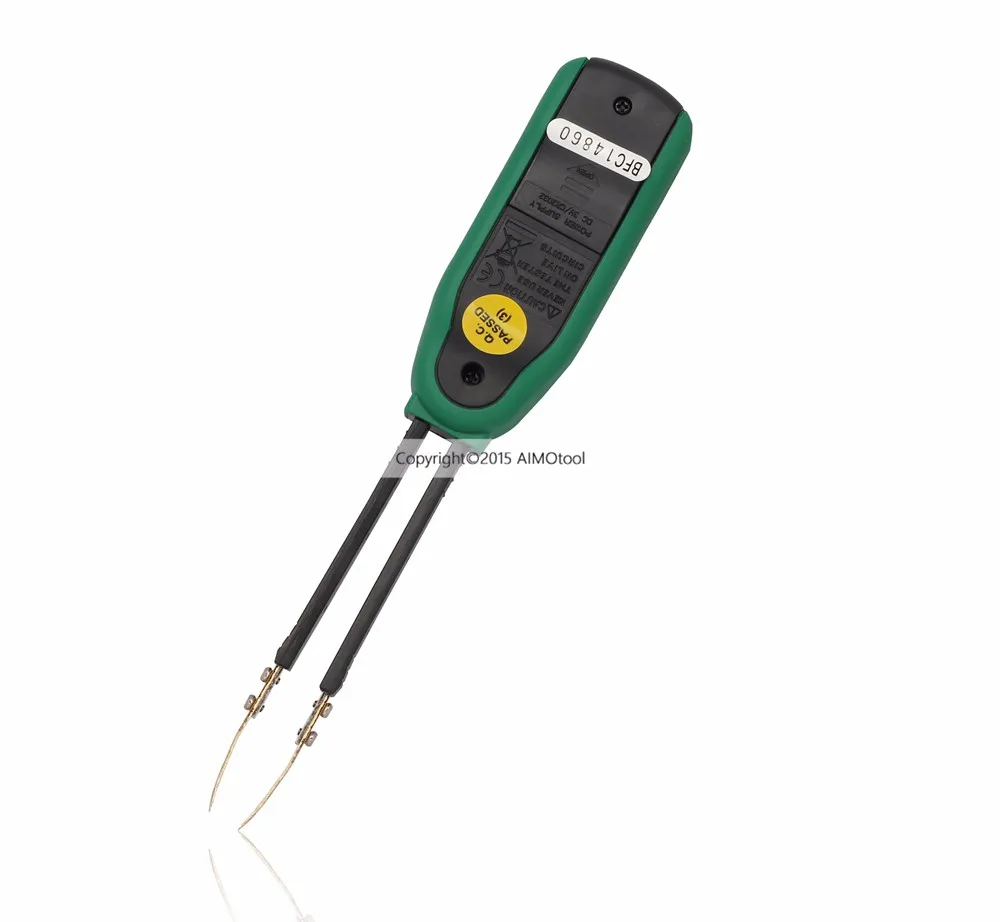

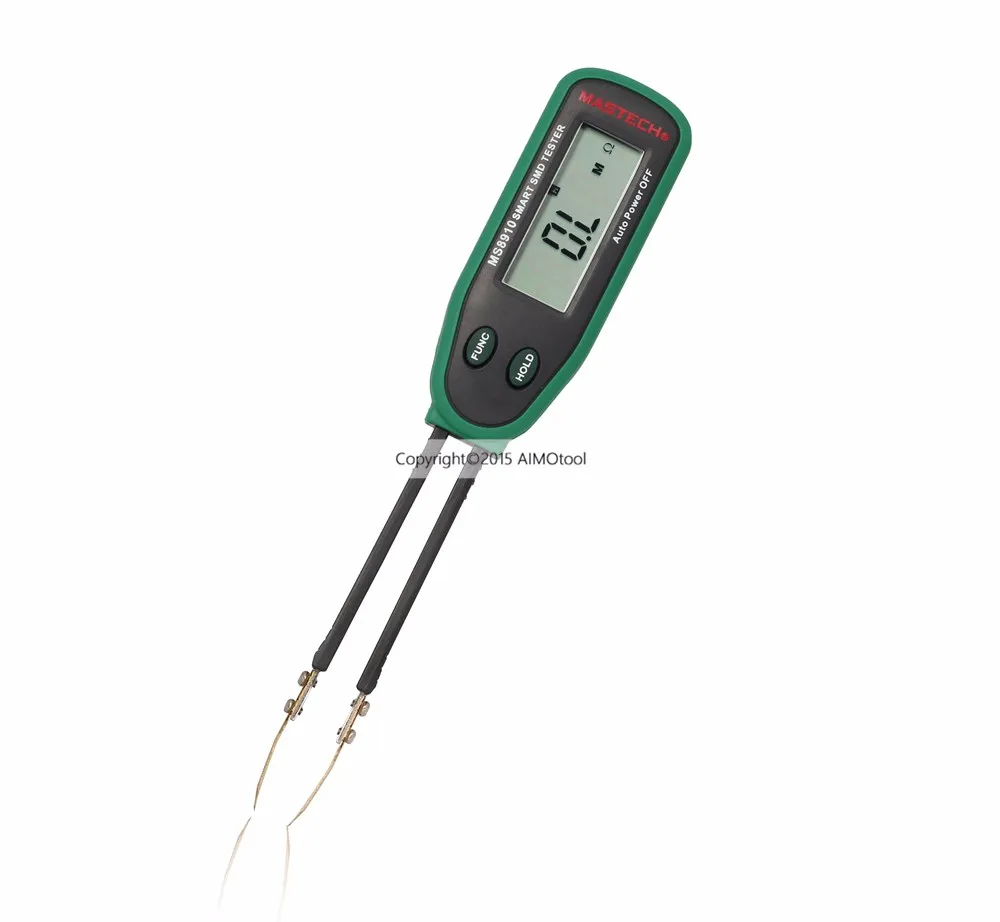

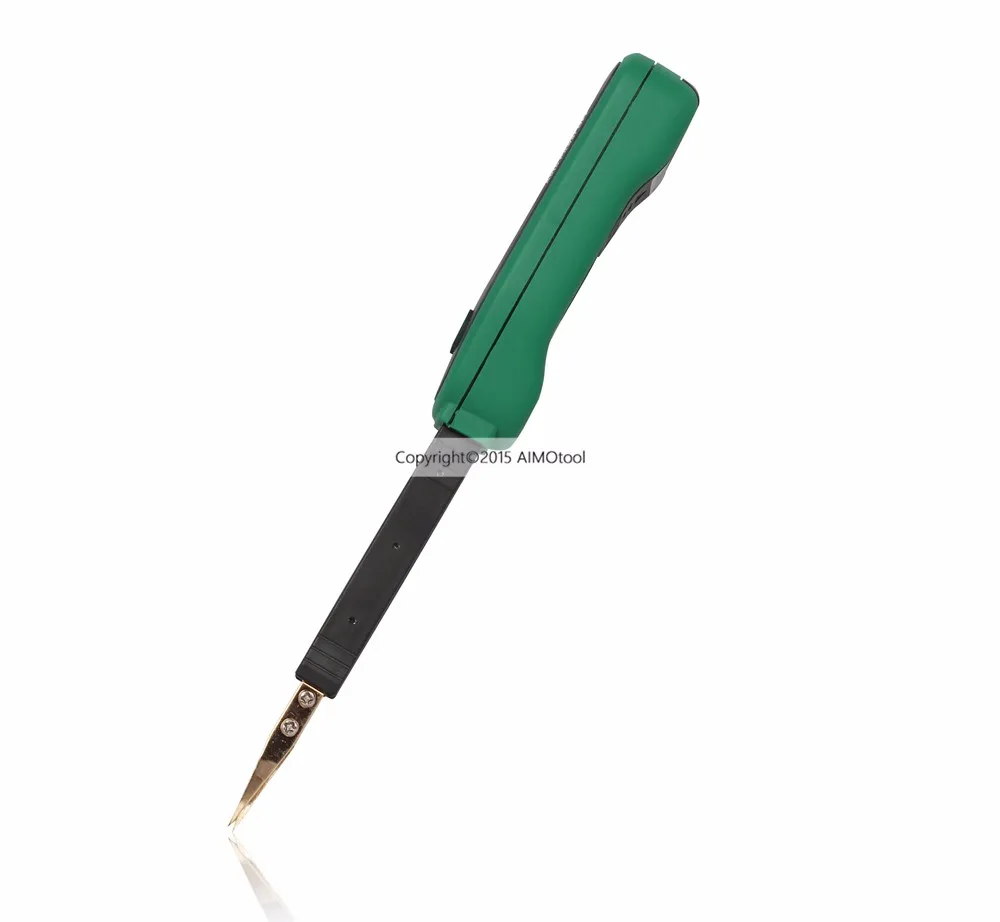

MS8910 Digital Multimeter SMART SMD Tester Resistance Capacitance Diode Tester Meter Auto Scan

MS8910 Digital Multimeter SMART SMD Tester Resistance Capacitance Diode Tester Meter Auto Scan



Descruption:

Display: 3000 counts LCD display.

Auto Scanning & Auto Ranging function. Therefore,fully automatic detecting.

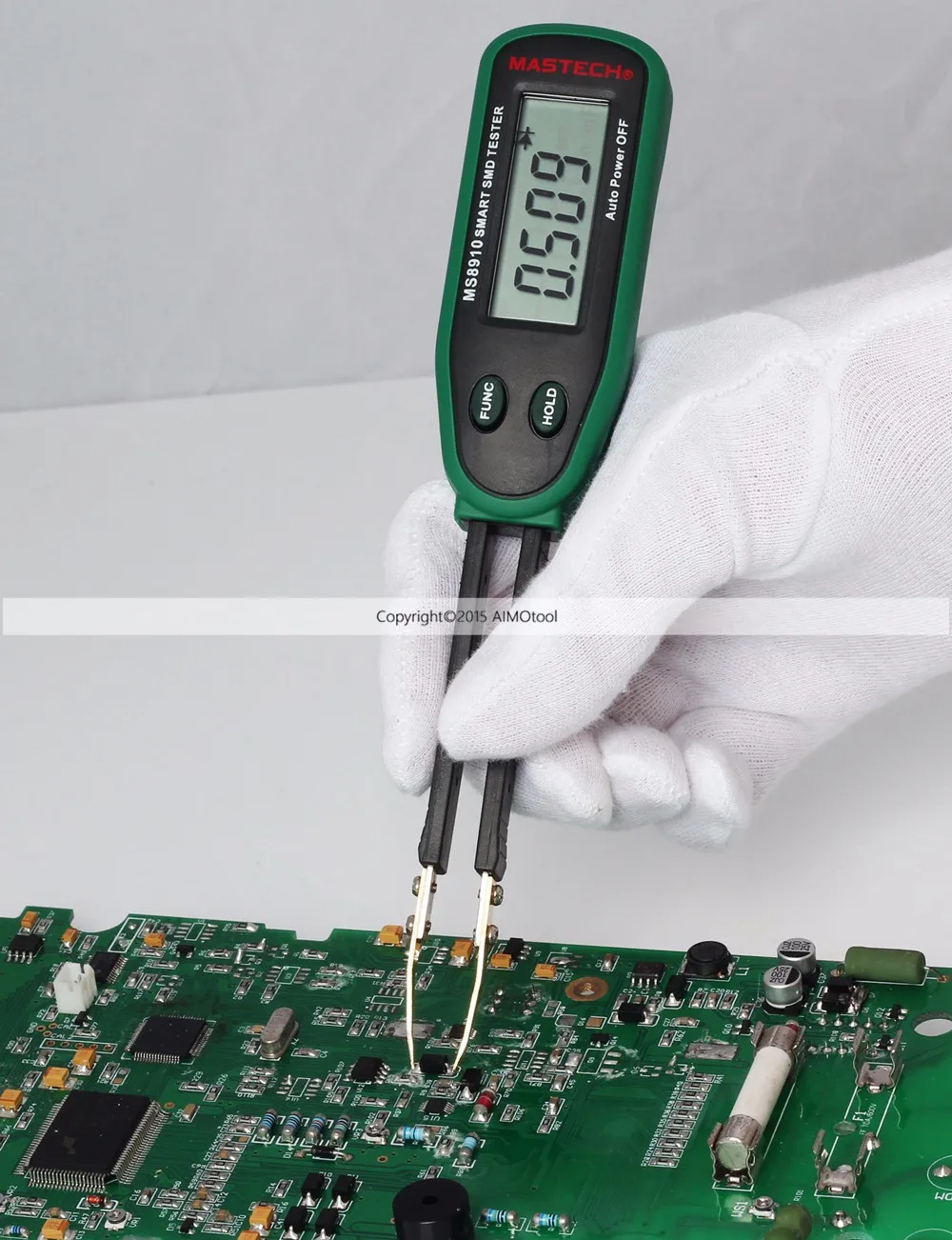

the chip type resistance, capacitance or diode measurement.

The construction of tester is compact and small type .So it as portable Testing set.

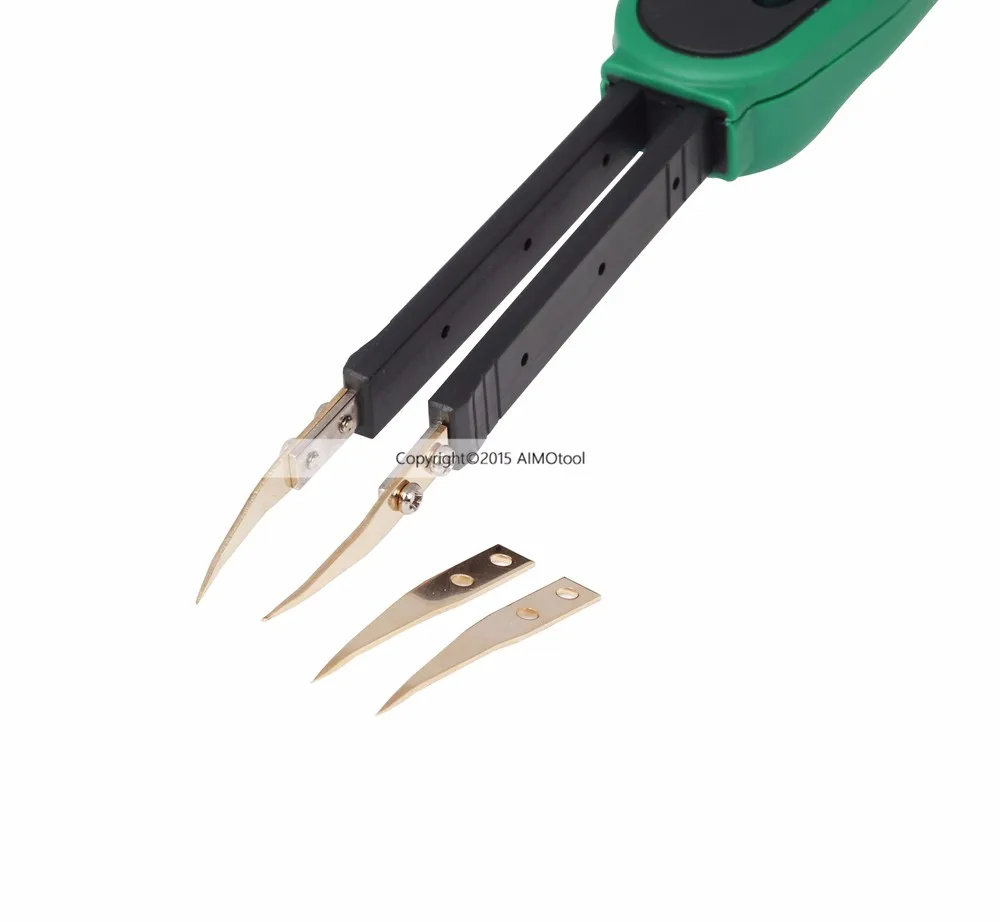

The test leads is special construction and fixed on the main body for convenience of user.

Data HOLD function.

Low-Battery Indication.

Auto Power OFF.

Operating temperature & Humidity :0~40C(32~104F)&<80%RH.

Storage temperature & Humidity: -10~50C(14~122F)&<70%RH.

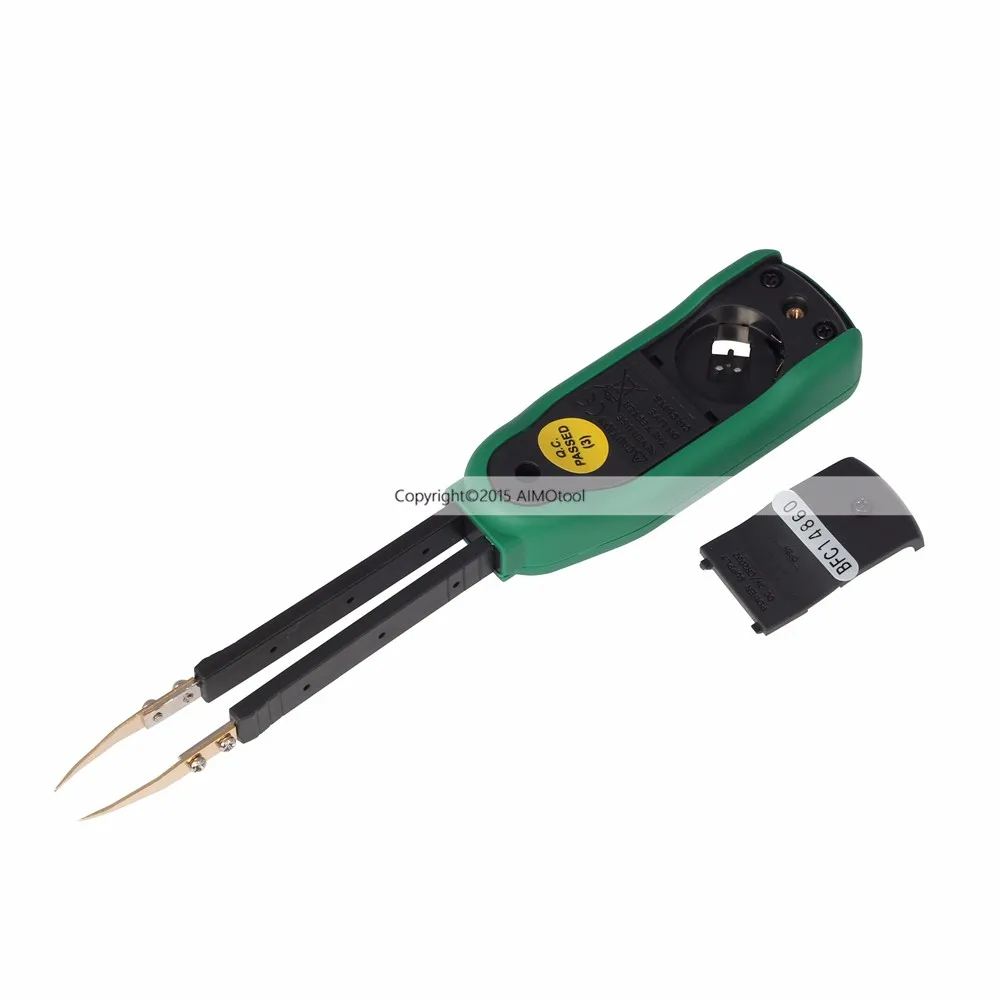

Power supply: 3V Lithium Battery 1pcs.

“FUNC”key is used to selecting any measurement mode.

Dimension (L×W×H): 135×72×19mm.



Specification:



Function	Range	Best Resolution	Accuracy
Resistance	300/3K/30K/300K/3M/30M	0.1Ω	±(1%rdg+ 3dgt)
Capacitance	3nF/30nF/300nF/3uF/30uF/300uF/3mF/30mF	1pF	±(2%rdg+ 3dgt)
Continuity Check, When the resistance is less than 30Ω,the Buzzer is sounded.
Diode Check	√
