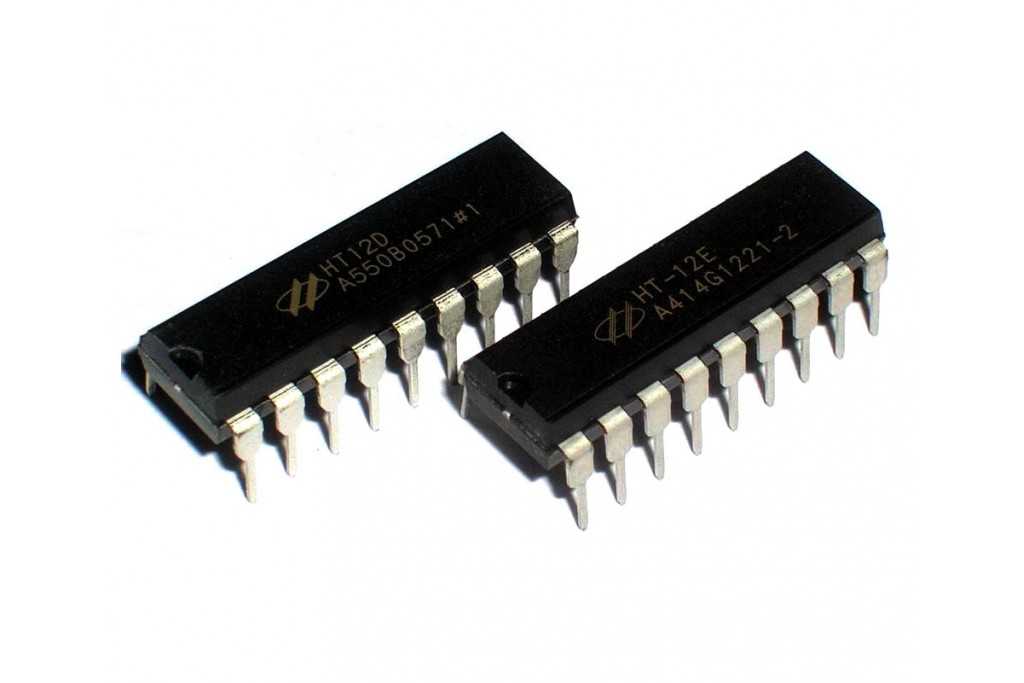

RF Encoder/Decoder IC HT12E / HT12D 18 Pin Dip

RF Encoder/Decoder IC HT12E / HT12D 18 Pin Dip OVERVIEW:
HT12E and HT12D are Encoder Decoder ICs manufacture by Holt for Remote Control Applications. These ICs can use with ASK RF Transmitter and Receiver modules. By using the paired HT12E encoder and HT12D decoder we can transmit 12 bits of parallel data serially. HT12D simply converts serial data to its input (may be received through RF receiver) to 12 bit parallel data. These 12 bit parallel data is divide in to 8 address bits and 4 data bits. Use 8 address bits we can provide 8 bit security code for 4 bit data and can  use to address multiple receivers by using the same transmitter. RF Encoder/Decoder IC HT12E / HT12D 18 Pin Dip

SPECIFICATION:
Wide Operating Voltage Range, 2.4V – 12V
Low Power Consumption
High Noise Immunity
Low Standby Current
8 Bit Address and 4 Bit Data
Minimal External Components
On-Chip Oscillator, needs only 5% resistor
HT12E Datasheet.
HT12D Datasheet.
Remote Control Systems
Burglar Alarms
Cordless Telephones
Smoke & Fire Alarm Systems
Security Systems
Garage and Car Door Controllers
Car Alarm Systems
