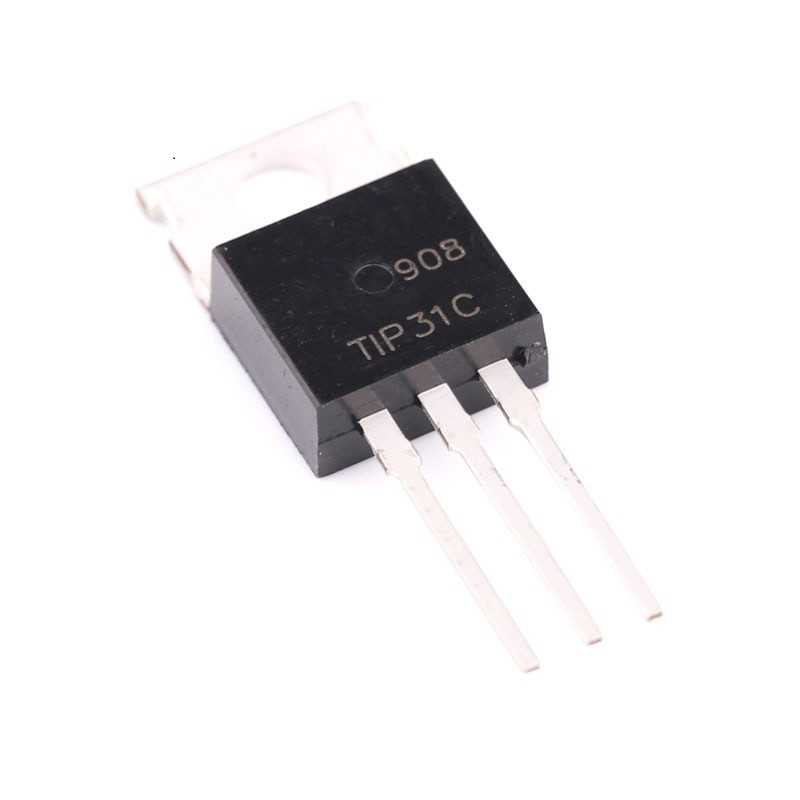

TIP31C Triode NPN Transistor

TIP31C Triode NPN Transistor is a Silicon NPN triode. The base is on the 1^st. the collector is on the 2^nd. And emitter is at 3^rd.

Its maximum ratings are 25-degree centigrade. Its collector base voltages are Vcbo and its voltages across it is 100V.

Collector-Emitter Voltages are represented by Vceo and its voltages are 100V. Emitter-Base voltages are Vebo and voltages across it are 5V. Collector Current which is continuous is represented as Ic is 3A. Collector current on its Peak is represented as Ic and current across it is 5A. Collector Power dissipation at 25-degree centigrade is represented as Pc which is 2W.tip31c amplifier circuits are reliable.

Purpose of TIP31C Triode NPN Transistor :



It is designed for the general-purpose amplifier.

it is also used for switching applications.

This is a Silicon NPN triode.

The base is on the 1^st. the collector is on the 2^nd. And emitter is at 3^rd.

Emitter-Base voltages are Vebo and voltages across it are 5V.

Collector-Emitter Voltages are represented by Vceo and its voltages are 100V.

collector base voltages are Vcbo and its voltages across it is 100V.
