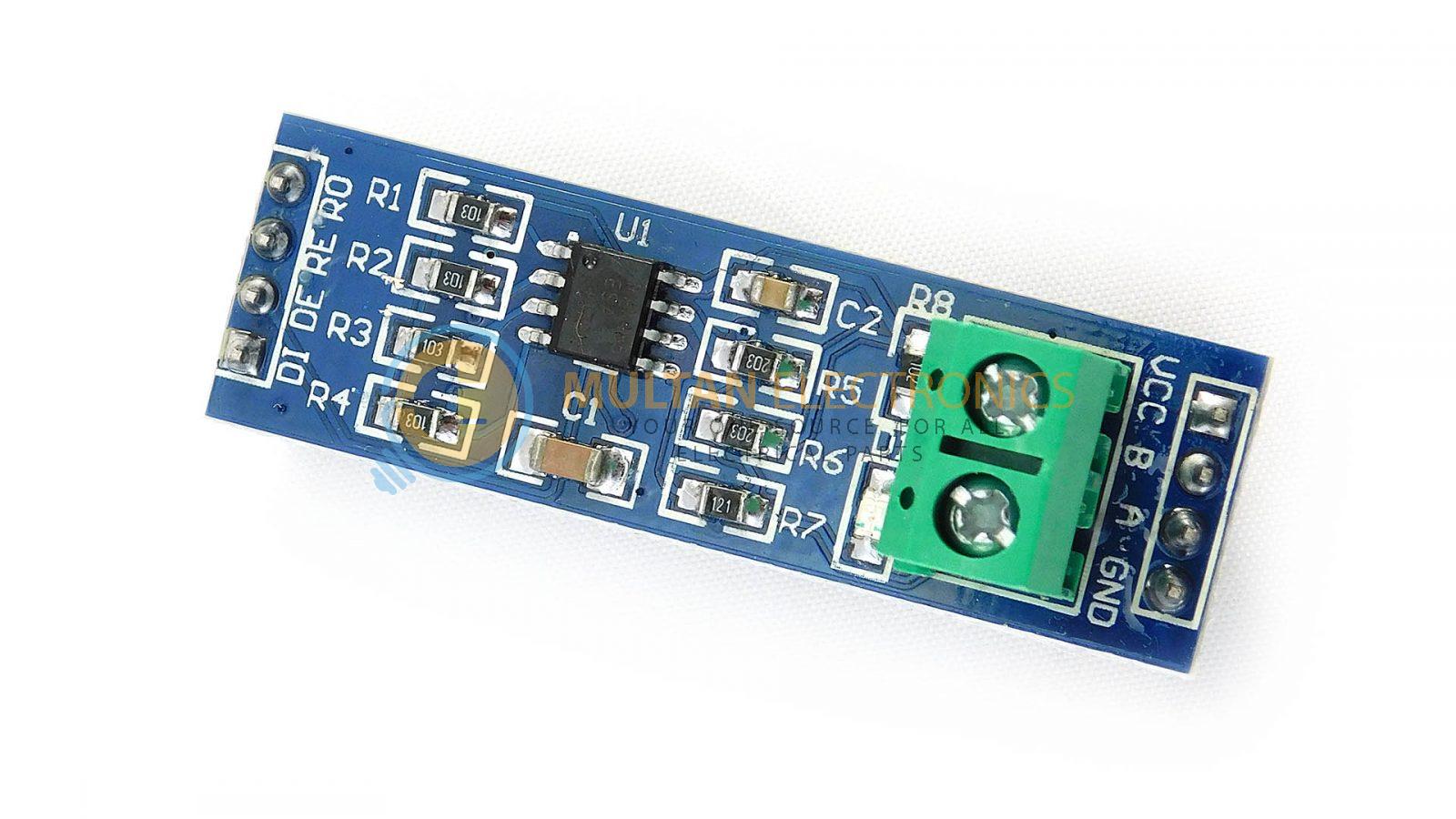

Description of RS485 to TTL Converter:

If you want to connect your microcontroller serially that’s far away from each other than this module interfaces RS-485 to TTL or vice-versa. It has Auto Direction control, making it easier to use as RS-232/TTL Serial Interface replacement. RS485 is used for Serial Communications over longer distances, Twisted pair cable can work up to 1.2 Km distance. And support multiple units on the same bus (Multi-Drop). This converter provides two way serial communications signal conversion between the RS485 to and from a TTL. Up to 32 nodes per network. The converter is designed for office and industrial applications (non-isolated), and provides superior characteristics/features normally found only on more expensive units.

Features of RS485 to TTL Converter:

Ground Output for wire shielding. Transceiver Facility (Automatic Switching between Transmit/Receive mode of RS485) Twisted pair cable can work up to 1.2 Km distance Supports point-to-multipoint, this converter can connect up to 32 RS485 interface device. On board 3 Pin 5.08 mm pitch screw terminal to facilitate RS-485 communication wiring. Termination Resister Jumper provides option to use in Multi Drop RS485 network. Four mounting holes 2.5 mm for easy mounting. Built in terminal resistor of 100R Ohm Maximum distance between end-nodes is 1200m. Up to 32 nodes per network. On board links are provided for enabling line termination (100 ohms).

Package Includes:

RS485 to TTL Converter
